MI cable cáp gia nhiệt độ cao (250oC) giá rẻ
| Material Description | JH MODEL Name | Description | Unit | Quantity |
|

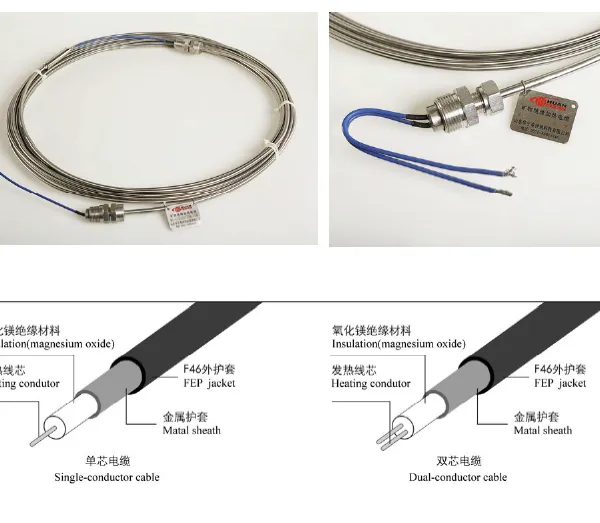

Mineral insulated cable |
MSF-1 L0250 |
Sheath: Alloy 825 Number of conductors: 1 Resistance: 250Ω/km 20℃ Max. Exposure Temp.：800℃ Voltage: 600V |
M |
150.6 |
|
Mineral insulated cable |
MSF-2 L1300 |
Sheath: Alloy 825 Number of conductors: 2 Resistance: 1300Ω/km 20℃ Max. Exposure Temp.：800℃ Voltage: 600V |
M |
77.4 |
|
Mineral insulated cable |
MSF-2 L8000 |
Sheath: Alloy 825 Number of conductors: 2 Resistance: 8000Ω/km 20℃ Max. Exposure Temp.：800℃ Voltage: 600V |
M |
59.4 |
|
Ex-proof Power junction box |
PTBM-GET-160A |
Polyester shell: 160mm (W) x 160mm (H) x 90mm (D) 1-M25x1.5 hole on the right side
3-M25x1.5 hole at the bottom 1- M25x1.5 ex-proof gland PA66 3-M25x1.5 ex-proof gland PA66 3-UK6N terminal block 2- USLKG6 grounding terminals |
PCS |
1 |
|
Ex-proof Power junction box |
PTBM-GET-160B |
Polyester shell: 160mm (W) x 160mm (H) x 90mm (D) 3-M25x1.5 hole at the bottom 3-M25x1.5 ex-proof gland PA66 3-UK6 terminal block 2-USLKG6N grounding terminals |
PCS |
1 |
|
Ex-proof Power junction box |
PTBM-GET-120C |
Aluminum alloy shell: 120mm (W) x 122mm (H) x 90mm (D) 2-M25x1.5 holes on each left and right side
1- M25x1.5 hole at the bottom 1- M25x1.5 ex-proof gland 304 stainless steel 2- UK6N terminal block 1- USLKG6 grounding terminals |
PCS |
9 |
|
Support bracket |
PET-JBM120A |
Galvanized iron material
For PTBM-GET-120 installation |
PCS |
9 |
|
Support bracket |
PET-JBM160A |
Galvanized iron material
For PTBM-GET-160 and PTDC installation |
PCS |
2 |
|
Temperature sensor |
PET-PT100 -EX |
Exd IIC T6 IP65
one M20 Gland hole with EAC |
PCS |
13 |
|
Mounting Strap,Stainless steel |
PET-SST/B |
10m/roll |
PCS |
7 |
|
Buckle for stainless steelmounting strap |
PET-SST/B1 |
Tank Adapter
Tank adapter is used for mounting junction box, end seal kit on the tank surface. |
PCS |
55 |
|
Mounting Strap,Stainless steel |
PET-SST-01 |
Suitable for 1″-2″ pipes |
PCS |
54 |
|
Mounting Strap,Stainless steel |
PET-SST-10 |
Suitable for 3”-10” pipes |
PCS |
333 |
|
Warning label |
PET-WLE |
Warning Label
– Electric Traced Label for traced pipes. – Language: English. |
PCS |
17442 |
| Total | 18213.4 | |||
