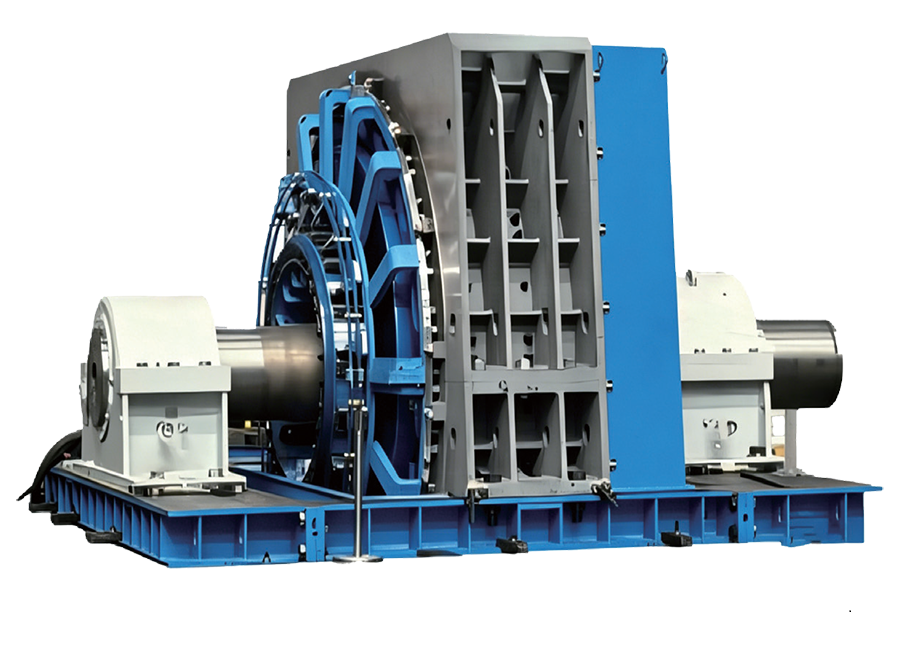

Động cơ điện DC motor công suất lớn 2800~6000kW
Specifications
| Type | ZD |
| Center Height Range | 1800~3500mm |
| Power Range | 2800~6000kW |
| Voltage Range | 660~1200V DC |
| Speed Range | 40-500r/min |
| Cooling Type | IC37, IC86W |
| Protection Degree | IP44, IP54 |
| Mounting Type | IM7311、IM7321、IM7312 |
| Structural Type | Horizontal |
| Operation Mode | Below base speed: constant torque, Above base speed: constant power |
| Insulation Class/Temperature Rise Class | H/F, F/B |
Application Fields
Metallurgy, mining, shipbuilding, testing equipment, etc.
